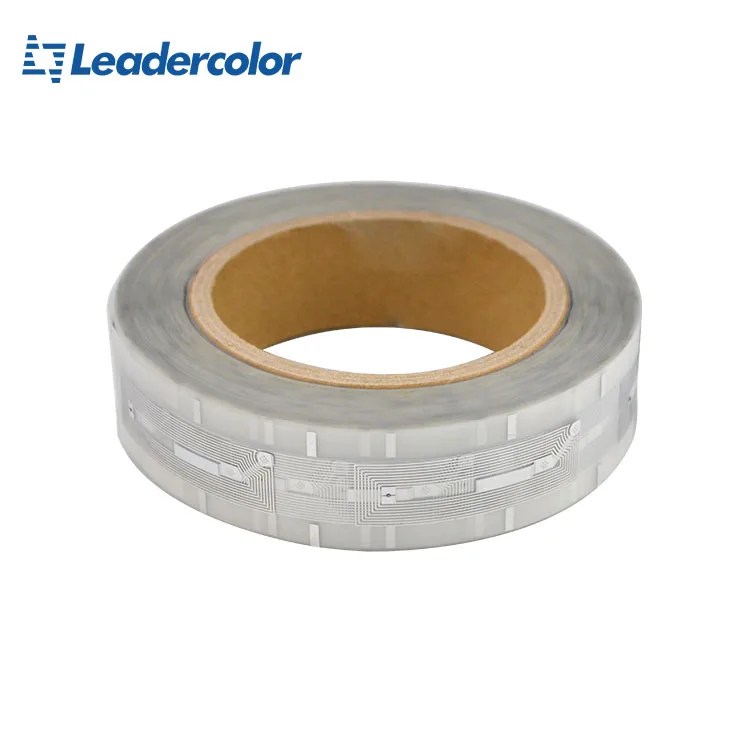

LDF-N5215 NFC Dry Inlay
LDF-N5215 NFC Dry Inlay
Tsanangudzo Pfupi:
Chinhu Nha.:LDF-N5215
Quick Details
It is a high-frequency inlay with aluminum etching technology, and its performance is consistent with that of ordinary high frequency inlay, and can be packaged into inlay, white label, printing and other forms. It can be applied to the anti-counterfeiting traceability, supply chain and other fields.
Applications
1. Supply Chain Management
2. Distribution Logistics
3. Product Authentication
4. Asset Inventory uye Tracking
5. Baggage Handling and Tracking
6. Item Level Tagging
7. NFC device data connection and data transmission
8. Wine or liquid bottles
NFC Dry Inlay
| RFID Parameter | |
| Muenzaniso Nha. | LDR-N5215 |
| Type | Worldwide HF 13.56Mhz |
| Protocol | ISO / IEC 14443 A & 18000-3 |
| Frequency | Worldwide HF 13.56Mhz |
| Chip | NTAG213（Customized） |
| Memory | UID 7Byte, User 144Byte |
| Verenga&Nyora | Inotsigirwa |
| Verenga Range | 0.1-10cm |
| Kuchengetwa kwedata | 10makore |
| Programming Cycles | 100,000 cycles |
| Physical Parameter | |
| Size | 52x15mm |
| Substrate Material | Transparent Release Firimu |
| Antenna Material | Aluminium Etching |
| Kushanda tembiricha | -50~80°C |
| Kushanda humidity | 20%~90%RH |
| Roll dhayamita | Inner 3inches |
| Package | 5000pcs/roll (Customized) |
| Customized Service | Optional Chips: MIFARE® Series, NTAG® Series Optional Materials: Coated Paper; PVC Paper; Synthetic PP Paper; PET Paper; Optional Glues: Standard Glues; 3M Glues; Strong Glues; Optional Printing: Offset Printing; Barcode Printing; UID Number Printing; UV Printing Optional Crafts: UID encoding; Optional Sizes: Smaller or Bigger |
Ehe, saizi inogona kugadzirwa zvinoenderana nezvinodiwa nemutengi, uye kureba nekufara kusina hanya.
Ehe, isu tinofara kukutumira mamwe azvino masampula ereferensi yako. Mienzaniso ndeyemahara, unongoda kubata mutengo wekutumira.
Ehe, unogona kusarudza zvinhu uye chip zvaunoda.
Odha yedu shoma ndeye 500 ~ 1000pcs.
Ehe, ndapota tumira mafaera mu "AI." kana "CDR" fomati ine "mapepa makuru" kwatiri neemail.
Chokwadi ndechekuti mavara anoratidzwa pamonitor yatakaona uye ruvara rwakadhindwa muzvigadzirwa chaizvo zvine misiyano. Nokuda kwehutano hwakanaka, unogona kutipa sampuro yemachisi kana iwo anotsanangura Pantone mavara. Isu tinofananidza ruvara pamusoro 90% iyo iri pamusoro peavhareji yeindasitiri ye 80%
Izvo zvinoenderana nenzira yekutumira yakasarudzwa, chena tag, Kazhinji, iwo ma tag anozotumirwa mukati me7 ~ 15 mazuva mushure mekubhadhara kwapera.
The trade assurance order inokurudzirwa. Alibaba chikuva chinochengetedza maodha ako kubva pakubhadhara kusvika pakuendesa, kana neT/T, Paypal uye zvichingodaro.
Ehe, tinopa quality assurance ye 1 makore, kunze kwekukuvadzwa kwemuviri.
