LDR-TZ02 UHF RFID Cable Tie Tag

Home / RFID Tag / RFID Hard Tags / LDR-TZ02 UHF RFID Cable Tie Tag

LDR-TZ02 UHF RFID Cable Tie Tag

Short Description:

Item No.:LDR-TZ02

Quick Details

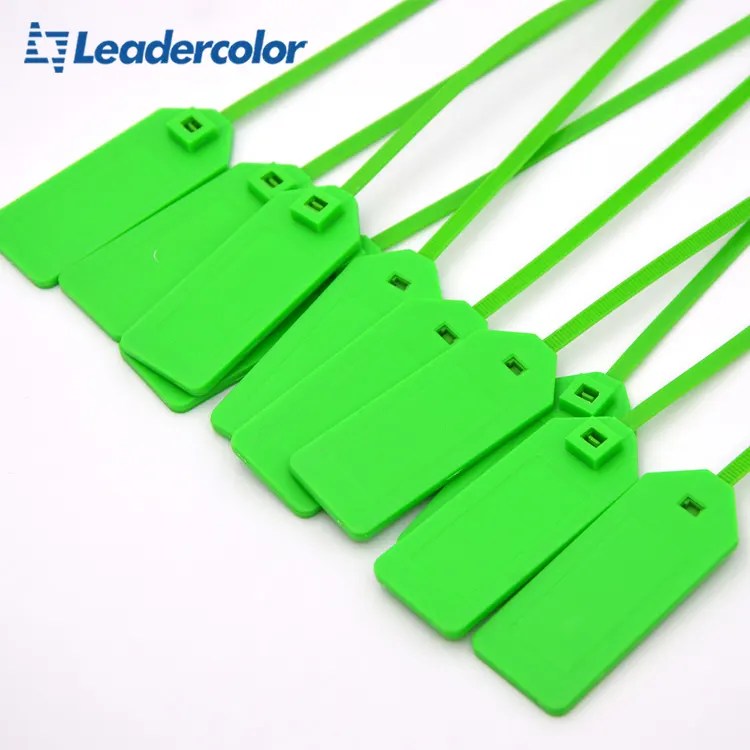

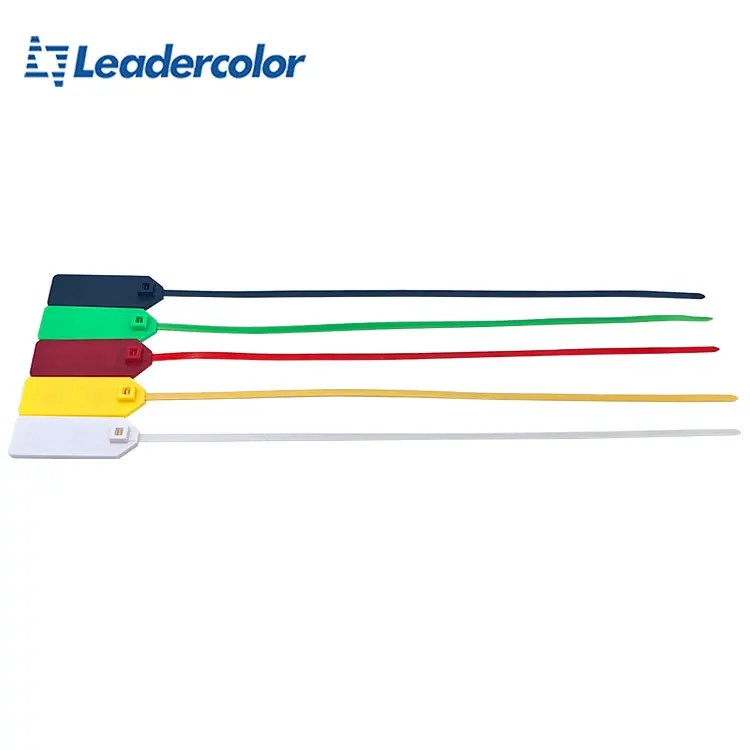

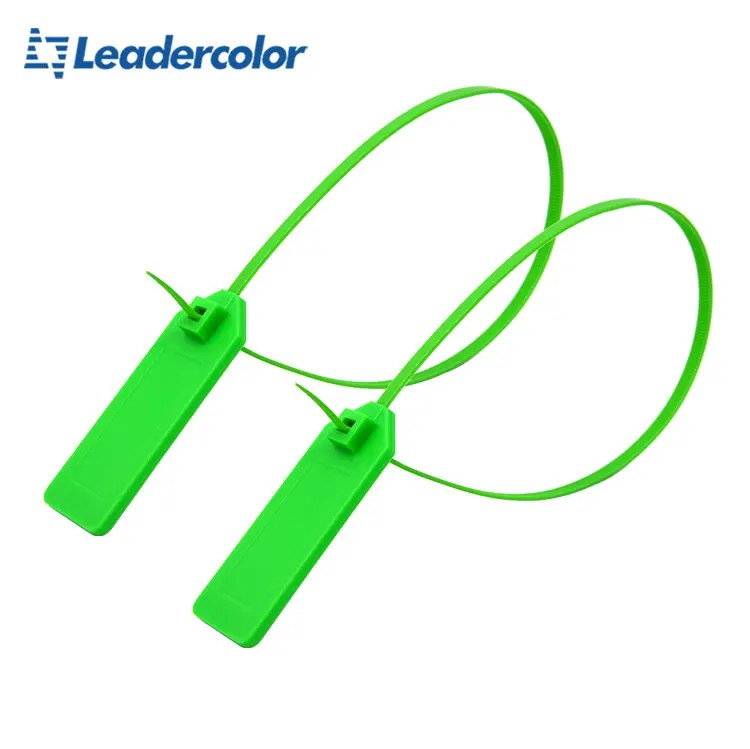

LDR-TZ02 UHF RFID Cable Tie Tag is designed as a zip. It is made of ABS and nylon material which can work in tough environment and with long lifespan and waterproof. It is disposable that cannot be separated after zipped. It can realize the track management of goods, meat and baggage.

Applications
1. RFID Pork tracking & Fresh Guarantee
2. Logistic Seal Packages, Airport baggage tracking
3. Tough environment that needs to zip

SEND EMAIL TO US

PRODUCT DETAIL

PRODUCT BROCHURE

FAQ

PRODUCT DETAIL

LDR-TZ02 UHF RFID Cable Tie Tag

RFID Parameter
Model No.	LDR-TZ02
Type	Passive UHF RFID Tag
Protocol	ISO/IEC 18000-6C, EPC Class1 Gen2
Frequency	Worldwide 840-960Mhz
Chip	Ucode 8（Customized）
Memory	EPC 128bit / TID 48Bits / User 0Bits
Read&Write	Supported
Read Range	0.5-1meters adjustable(reader and environment dependent)
Data retention	10years
Programming Cycles	100,000 cycles
Anti-collision	Support multiple tags reading
Physical Parameter
Size	60x28x4mm（LxWxH）, Tail length:285mm
Color	Blue, Green
Material	ABS Waterproof +Nylon
Antenna Material	PET+Aluminum Etching
Installation	Zip Tie Seal, Inseparable when zipped
Operating temperature	-25℃ ~ +65℃
Operating humidity	20% ~ 90%RH
Package	50pcs/pack（Customized）
Customized Service	Printing, EPC Pre-written

61a330c17c11c95fd0e8cb585369a1ed

PRODUCT BROCHURE

File Name
LDR-TZ02 UHF RFID Cable Tie Tag

FAQ

Yes, the size can be customized according to customer’s requirement, and indifferent length and width.

Yes, we are so glad to send you some current samples for your reference. The samples are free, you just need to handle the delivery cost.

Yes, you can choose the material and chip what you want.

Our minimum order is 500~1000pcs.

Yes, please send the files in “AI.”or “CDR” format with “greate outlines” to us by email.

The fact is that the colors shown on the monitor we saw and the color printed in actual products have differences. For the best quality effect, you may provide us a match sample or the specify Pantone colors. We match the colour over 90% which is much more above the industry average of 80%

It depends on the shipping method chose, the white tag, Normally, the tags will be sent out within 7~15 days after payment is completed.

The trade assurance order is recommended. Alibaba platform will protect your orders from payment to delivery, or by T/T, Paypal and so on.

Yes, we provide quality assurance for 1 years, except the physical damage.
