LDI-SG001A 134.2khz RFID Glass Tag with Syringe
LDI-SG001A 134.2khz RFID Glass Tag with Syringe
Short Description:
Item No.:LDI-SG001A
Quick Details
LDI-SG001A LF RFID glass tag suitable for animal husbandry:cat,dog,horse,cow,sheep,rabbit,donkey,fox,arowana,etc.,rfid glass ear tag is divided into read-only and readable type. which is produced in accordance with biochemical medical materials. It conforms to ISO11784/85 and adopts the most advanced bio-glass material, which effectively prevents dissociation and animal zero rejection.
Features
1. Integrated design of needle and syringe
2. Small size, light weight, easy injection/implantation
3. The surface of the chip is specially coated to prevent dissociation in the animal body
4. Encapsulated with biological glass, safe and reliable
5. It has ICAR certification of “International Animal Coding Committee”
6. In line with the international logo ISO11784/11785 standard, universal
7. Comply with the GB/T 20563-2006 animal radio frequency identification standard promulgated by China National Standards Committee

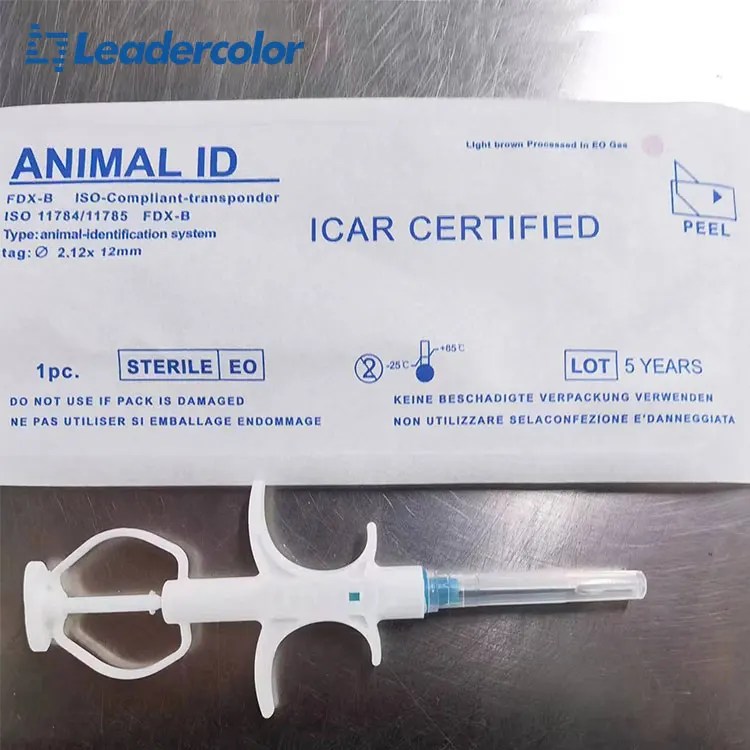

LDI-SG001A 134.2khz RFID Glass Tag with Syringe
Syringe Description | |
Syringe size | 50 x 120mm |
Package size | 90 x 220mm |
Packing material | Medical breathable paper |
Disinfection method | EO (ethylene oxide) disinfection, valid for five years |
Syringe material | Polypropylene |
Syringe color | The needle barrel is white and the needle tip is not detachable |
Packaging visible information | Disinfection date, effective use date, 15 digit code (represented by barcode) |
Weight | 8.5g |
The appearance features of the syringe | Fully adopt ergonomics. The push rod structure is made into five friction points, which is convenient for injection, and has stability, sealing, small deformation and high mechanical strength |
Pet chip | |
Protocol | ISO11784 / 11785 |
The animal identification format | ISO11784 / 11785 FDX-B |
Size | 2.12*12mm |
Frequency | 134.2K±5KHZ |
Chip type | EM4305 / HiTag-S256 |
Chip memory | 512bits / 256bits |
Working temperature | – 20 ℃ ~ 50 ℃ |
Storage temperature | – 40 ℃ ~ 70 ℃ |
Work Lifetime | Not be less than 20 years |
Serial Number | There is a globally unique serial number attached to ensure the unique of the tag. There is a certificate issued by the International Committee on animal records (ICAR) |
Chip encryption | Supports the international common AES algorithm encryption and uses 15 bit key. |
Material safety requirements | Internal :Lead-free and non-toxic materials Exterior: bioglass |
Installation Method:
It is directly injected into under the skin of the animal’s body by a professional using a special syringe and implanted at a horizontal angle of 45°
Step 1: Scan animal to ensure no chip already implanted
Step 2: Read chip before implanting ,Check the chip code matches the chip in needle
Step 3: Remove syringe from pack and remove needle cover. Inject the microchip into the recommended implant site
Step 4: Scan the implant site and check the chip has been securely implanted
We are a professional manufacturer for 13 years,welcome to visit our factory.
Yes, we are so glad to send you some current samples for your reference. The samples are free, you just need to handle the delivery cost.
Our minimum order is 1000pcs.
Surely, OEM/ODM are highly welcome, we are welcome to cooperate as customized service.
It depends on the shipping method chose, the white tag, Normally, the tags will be sent out within 7~15 days after payment is completed.
The trade assurance order is recommended. Alibaba platform will protect your orders from payment to delivery, or by T/T, Paypal and so on.
Yes, we provide quality assurance for 1 years, except the physical damage.
