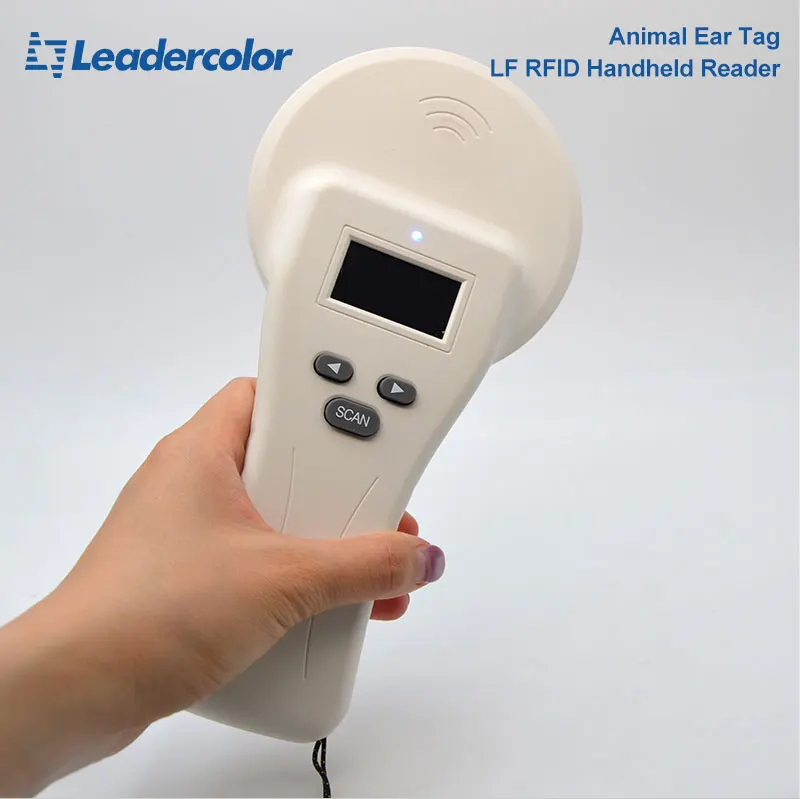

LDI-A07A Animal Tag LF RFID Handheld Reader (Only Read)
Item No.:LDI-A07
Quick Details
This handheld device adopts RFID wireless recognition method and supports electronic tags in FDX-B, FDX-A, and HDF (ISO11784/85) formats. The product adopts a high brightness OLED display screen, which can display clearly even under strong indoor or outdoor light conditions. The built-in storage function of the product can store up to 20000 tag information. Users can transfer the tag data stored in the device to a computer or mobile phone for data management through USB data cable or Bluetooth wireless connection. It is matched with PC upper computer software and supports data export and device configuration modification.
This product has stable performance, simple operation, and is suitable for animal management, traceability management, railway inspection, and other asset management fields.
Application
1. Pet ID & Medical Record Tracking
2. Livestock Breeding & Traceability
3. Wildlife Research & Field Monitoring
4. Laboratory Animal Management
| RFID Parameter | |
| Model No. | LDI-A07 |
| Type | Animal Tag LF RFID Handheld Reader (Only Read) |
| Protocol | IS011784/85 standards |
| Frequency | Worldwide 134.2KHZ |

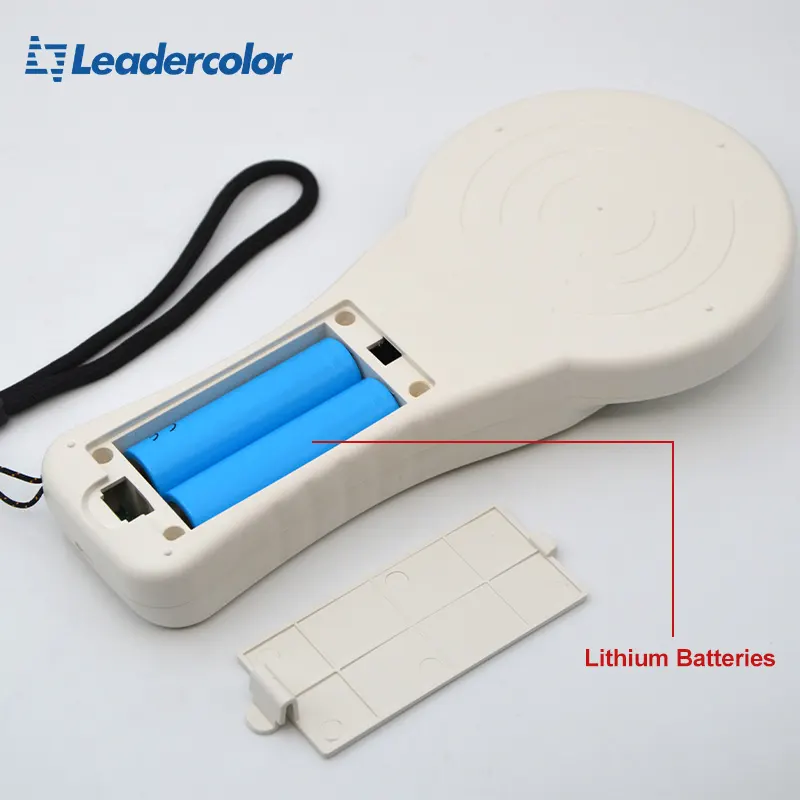

| Power supply | Two 18650 lithium batteries |
| Working Mode | only Read |
| Read and write distance |
2.12 * 12 chips>12cm (± 3cm) 30mm ear tag>30cm (± 5cm)
2 * 12m chip>10cm (± 3cm)
30mm ear tag>35cm (± 5cm) (The device reading distance is related to tag performance and operating environment) |
| Read time | ＜100ms |
| Read Prompt | LED&Buzzer |
| Signal indication | 1.54-inch 128 * 64 high brightness OLED, buzzer |
| Physical Parameter | |

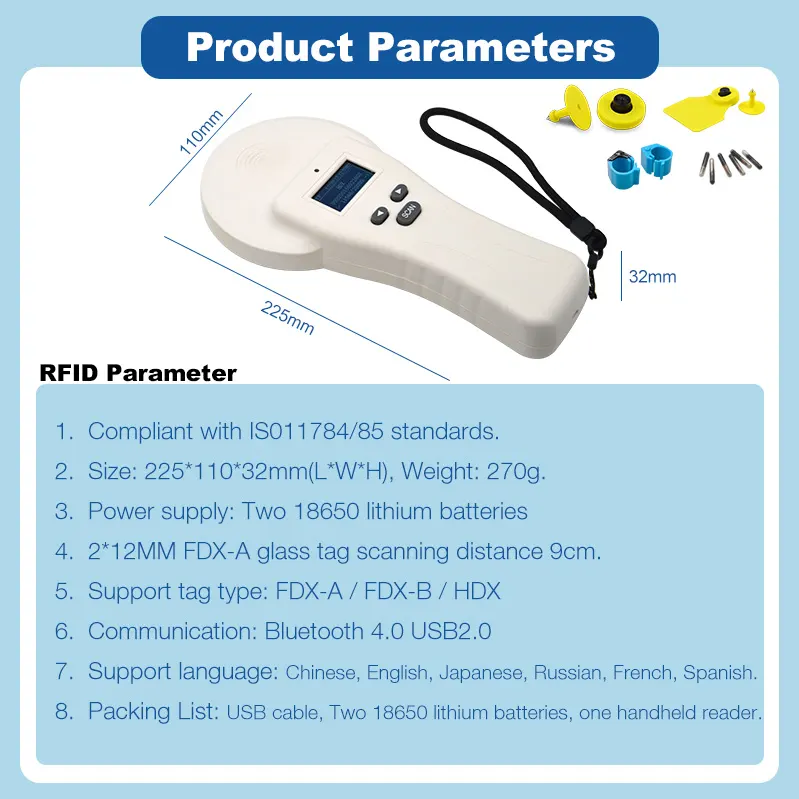

| Size | 225x11x32mm |
| Weight | 270g |
| Color | white |
| Material | ABS Waterproof |
| Data Interface | USB for power supply and read information |
| Operating temperature | -10℃ to +50℃ |
| Storage temperature | -30℃ to +70℃ |
| Support language | Chinese, English, Japanese, Russian, French, Spanish |

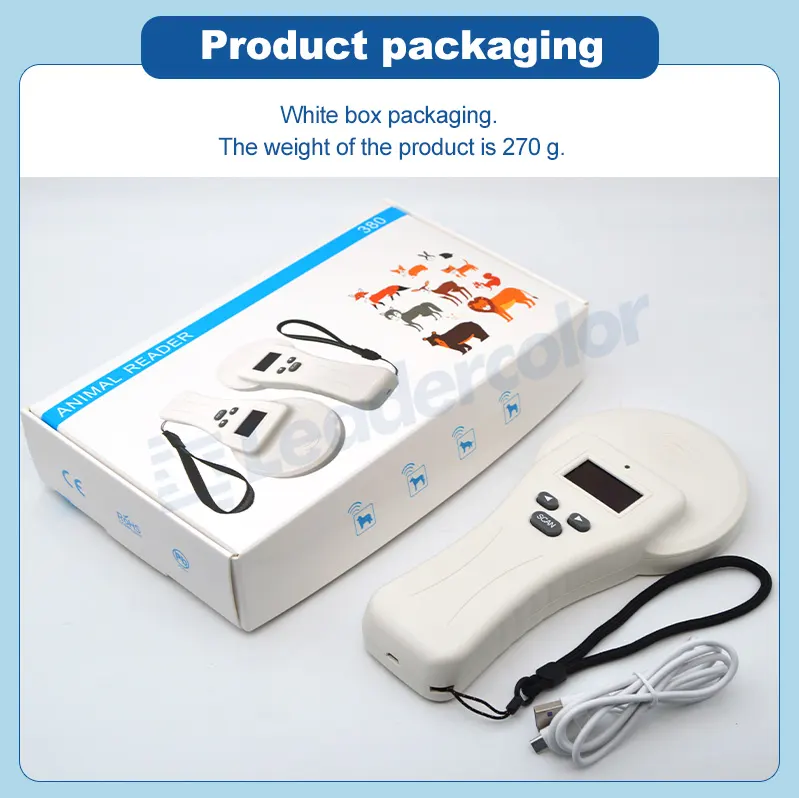

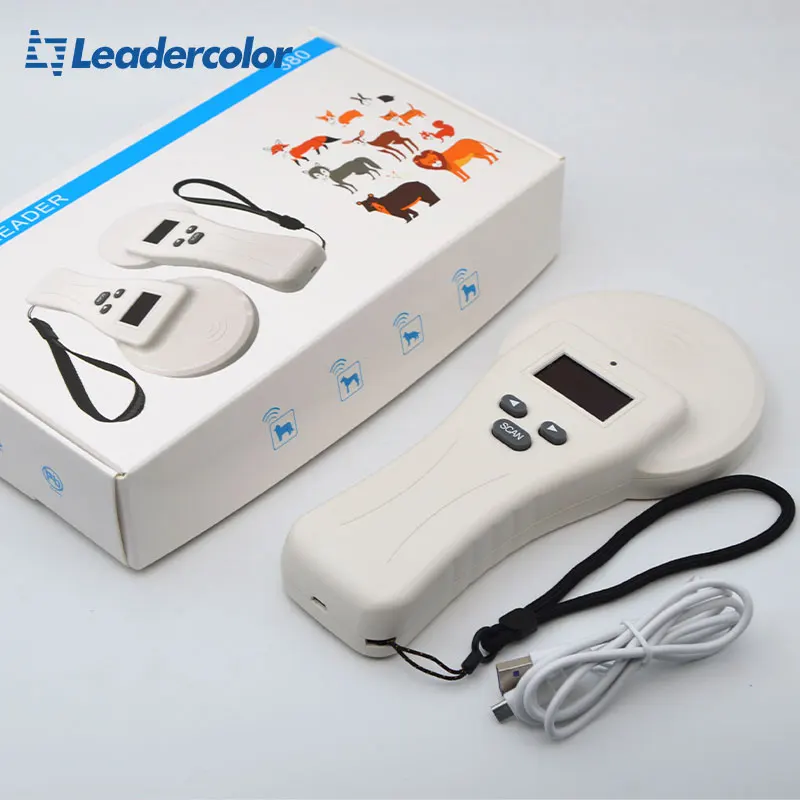

| Package | USB cable, Two 18650 lithium batteries, one handheld reader. |
We are original equipment manufacturer in RFID reader for over 12 years.
Our RFID reader MOQ is 1pc, RFID tag MOQ is 100pcs.
T/T , Western Union , Paypal , Alibaba trade assurance.
All our product have 1 year warranty if no human caused.
3.Yes, most our technical information have upload to our website: www.leadercolor.com , you can download it directly from website ,also you can contact our oversea salesman send to you.
