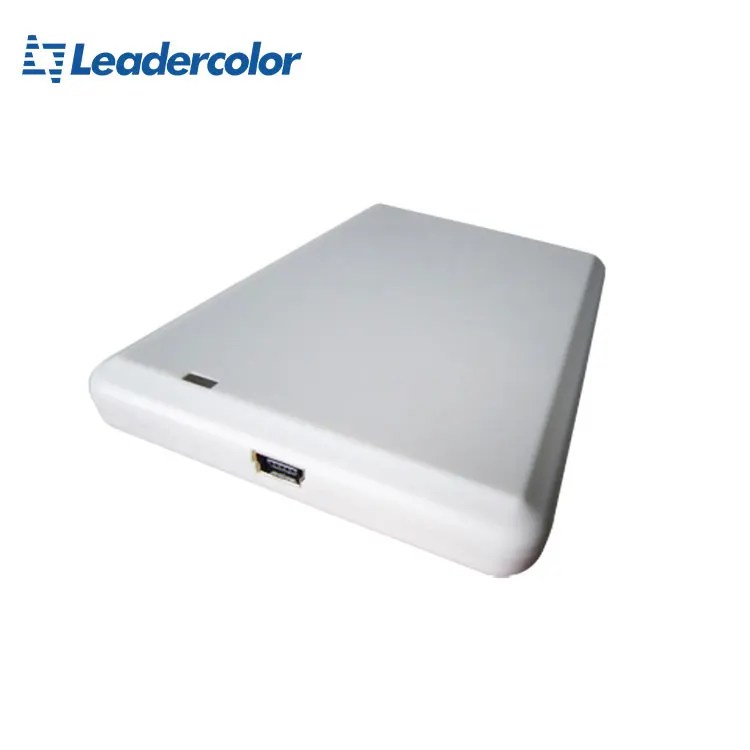

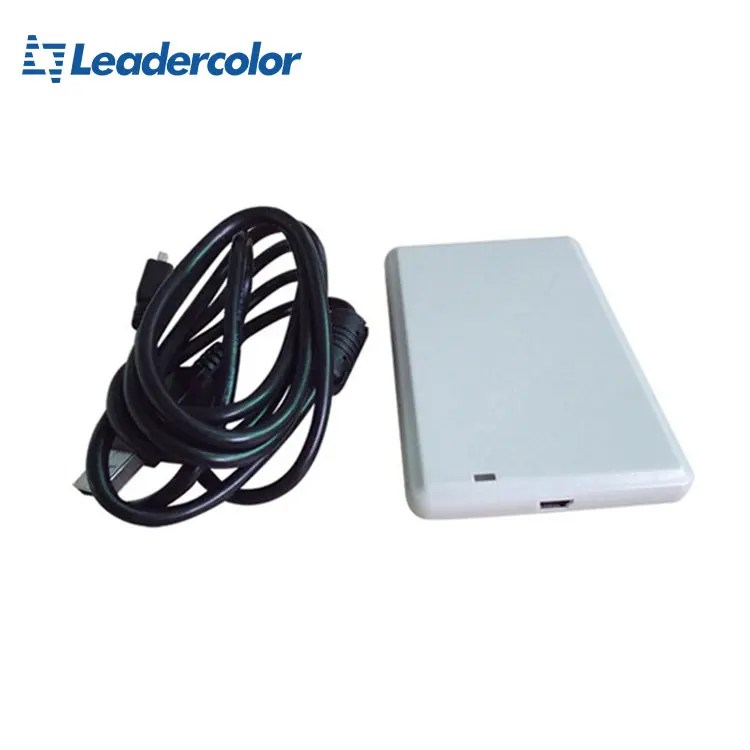

LDF-1036USB DESKTOP ISO14443A Protocol HF Tag Reader
LDF-1036USB DESKTOP ISO14443A Protocol HF Tag Reader
mubo nga paghulagway:
Item No.:LDF-1036USB
Dali nga mga Detalye
LDF-1036USB is a high performance ISO14443A Protocol HF tag reader. It is designed upon fully self-intellectual property and supports fast tag read/write operation with high identification rate. It can be widely applied in many RFID application systems such as logistics, personnel identification, conference attendance system, kontrol sa pag-access, anti-counterfeit and industrial production process control system.
Mga aplikasyon
1. Personnel identification
2. Conference attendance system
3. Pagkontrol sa pag-access
5. Anti-counterfeit and industrial production process control system.
LDF-1036USB DESKTOP ISO14443A Protocol HF Tag Reader
| Parameter sa RFID | |
| Model No. | LDF-1036USB |
| Matang | RFID HF Reader |
| Protokol | ISO14443TypeA/TypeB |
| Frequency | Tibuok kalibutan nga 13.56Mhz |
| Pisikal nga Parameter | |
| Gidak-on | 105x70x11mm |
| Materyal nga | Plastic |
| Timbang | 80g |

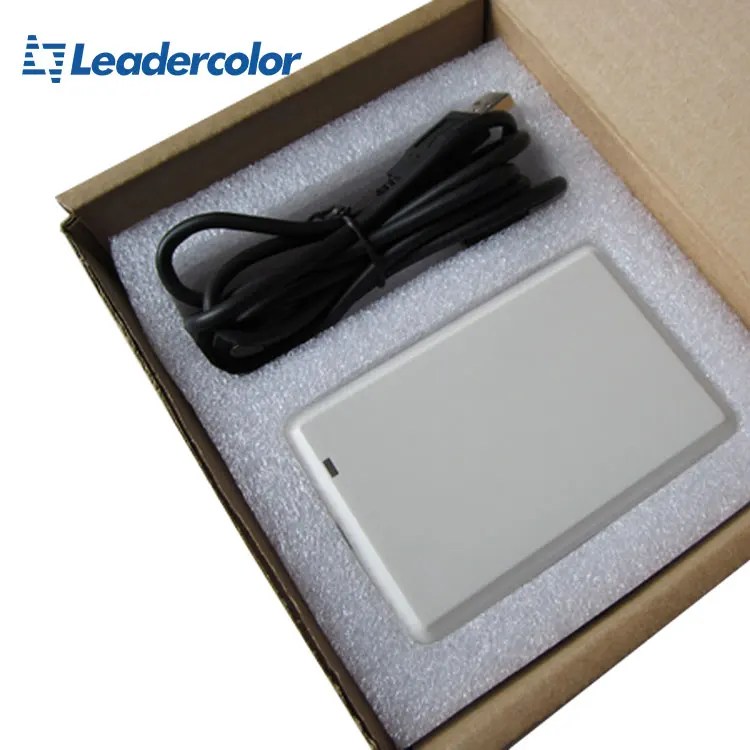

| Pakete | 1mga pcs/kahon, 10mga kahon/karton,（Gipasibo） |
Features:
1. Self-intellectual property;
2. Support mainstream ISO14443A protocol tag;
3. Advanced tag processing algorithm, high identification rate;
4. Built-in TX/RX antenna with effective distance up to 150mm*;
5. Low power dissipation design;

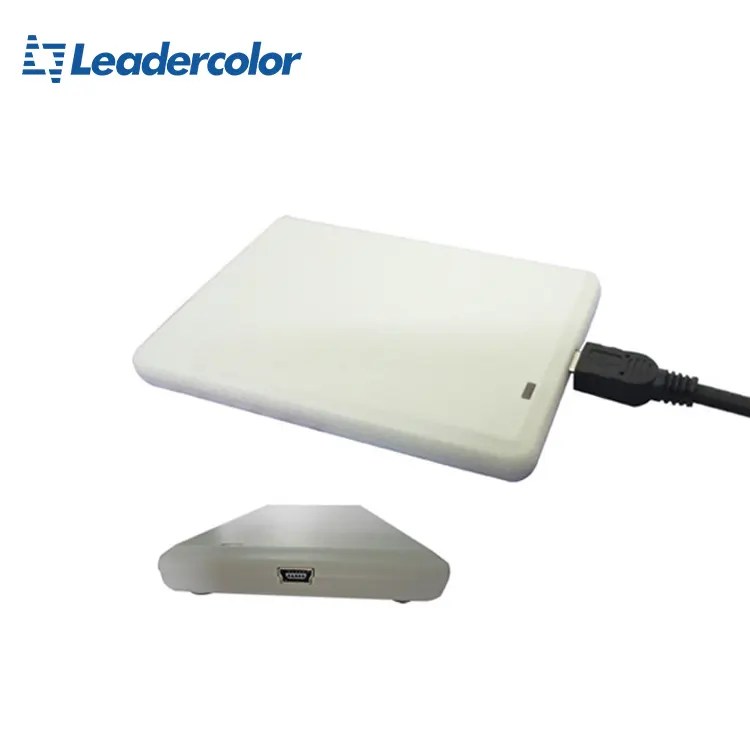

6. USB 1.1 interface. No external power source needed;
7. Provide DLL and demonstration software to facilitate development.
CHARACTERISTICS
Absolute Maximum Rating
| ITEM | SYMBOL | VALUE | UNIT |
| Power Supply | VCC | 6 | V |
| Operating Temp. | TOPR | -10~+60 | ℃ |
| Storage Temp. | TSTR | -25~+80 | ℃ |
Electrical and Mechanical Specification
Under TA＝25℃，VCC＝+12V unless specified
| ITEM | SYMBOL | MIN | TYP | MAX | UNIT |
| Power Supply | VCC | 3.3 | 5 | 5.5 | V |
| Current Dissipation |
IC |
90 | 150 | mA | |
| Frequency | FREQ | 13.56 | MHz | ||
| Effective Distance* | DIS | 0 | 100 | 150 | mm |
*Effective distance depends on tag and working environment.
Remark:
1. Specifications are subject to change, please pay attention to our latest one.
2. Leadercolor reserves the right to the final interpretation of the above terms.
Kami mga orihinal nga tiggama sa kagamitan sa RFID Reader alang sa sobra 12 mga tuig.
Ang Atong RFID Reader Moq mao ang 1pc, Ang RFID Tag Moq mao ang 100pcs.
T / t , Unyon sa Kasadpan , Baypal , Assiblence ALIBaba Trade.
Ang tanan namon nga produkto adunay 1 Tuig nga garantiya kung wala'y hinungdan sa tawo.
3.Oo, Kadaghanan sa among teknikal nga kasayuran nag-upload sa among website: www.leadercolor.com , Mahimo nimo kini i-download direkta gikan sa website ,Mahimo usab nimo makontak ang among taga-Oversea salesman nga ipadala kanimo.
